These flowcharts are created by Alex Badyaev, All content © 1997, 1998, 1999, no kidding
Each flowchart is a separate image.
To PRINT, please first open the flowchart in a separate window (View Image command on the right menu of the mouse) and then select Print

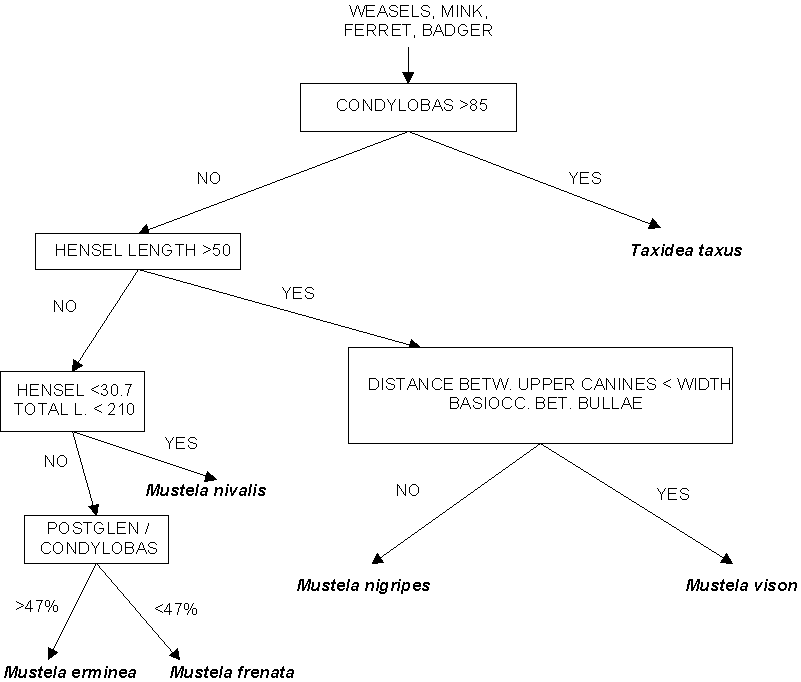

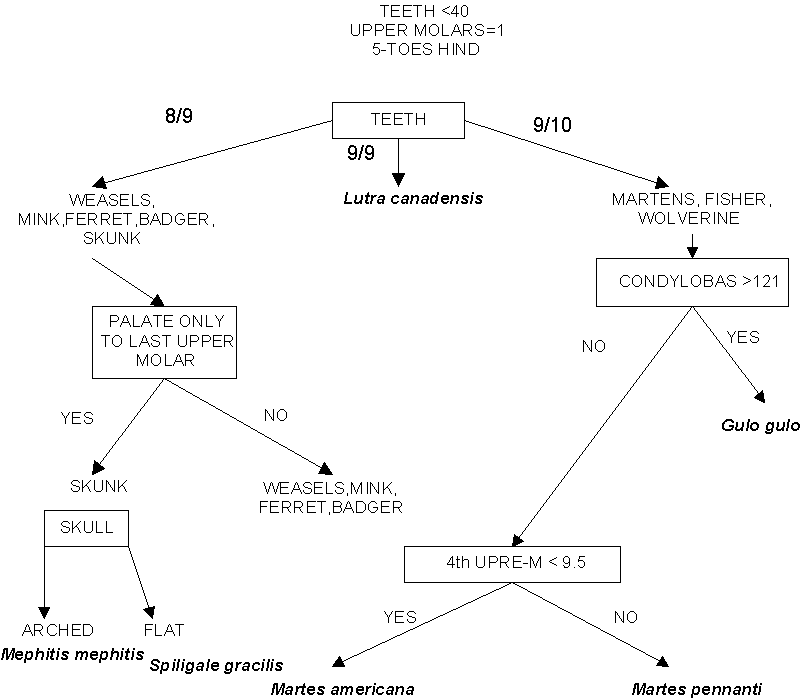

Laboratory 2: ORDER CARNIVORA --- Family Mustelidae
Key 1:
Key 2:

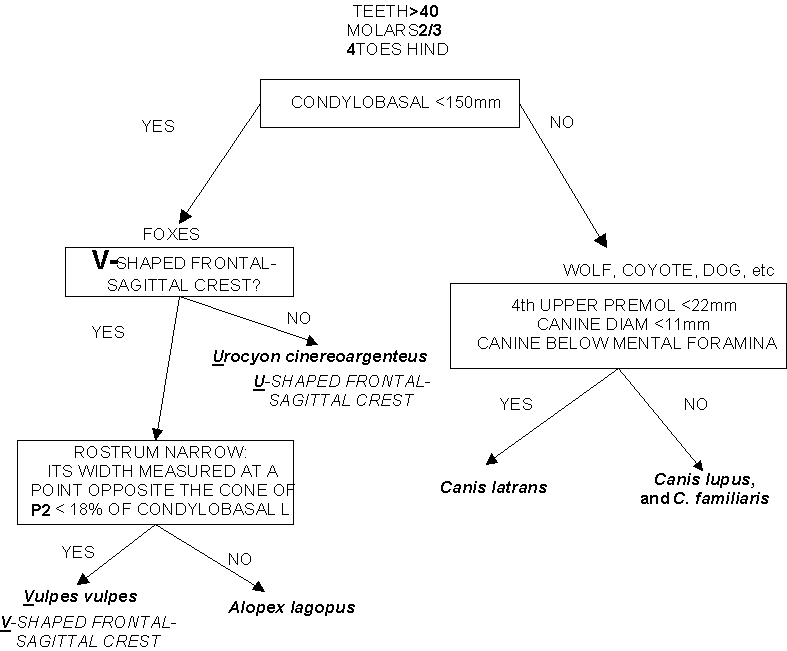

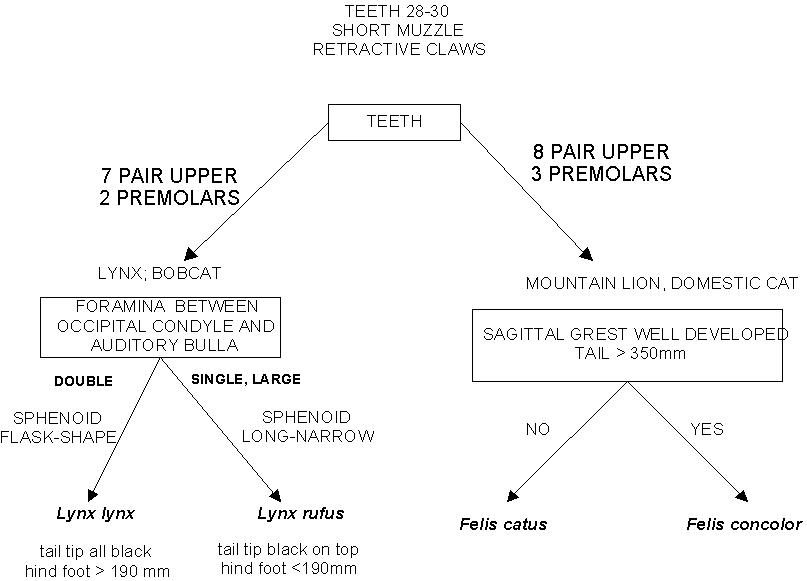

Laboratory 3: ORDER CARNIVORA -- Family Canidae & Family Felidae
Key:
Laboratory 4: ORDER DIDELPHIMORPHIA

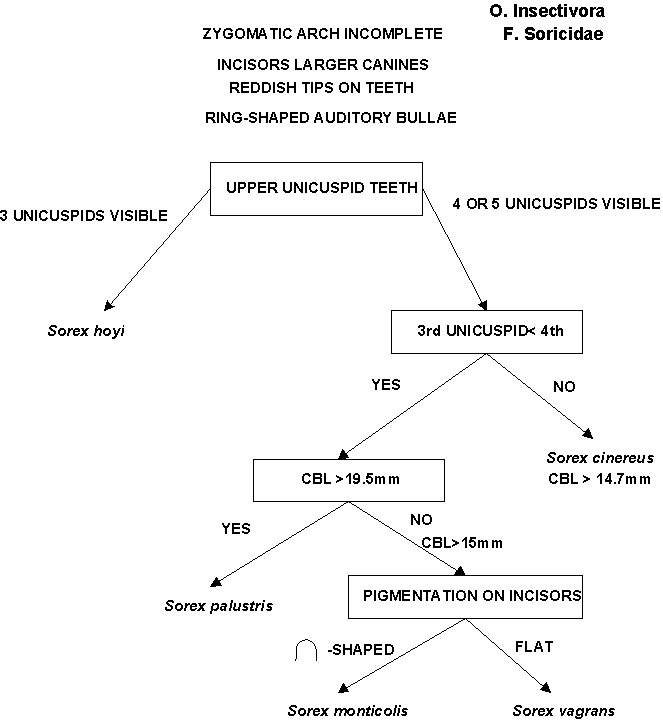

ORDER INSECTIVORA --- Family Soricidae

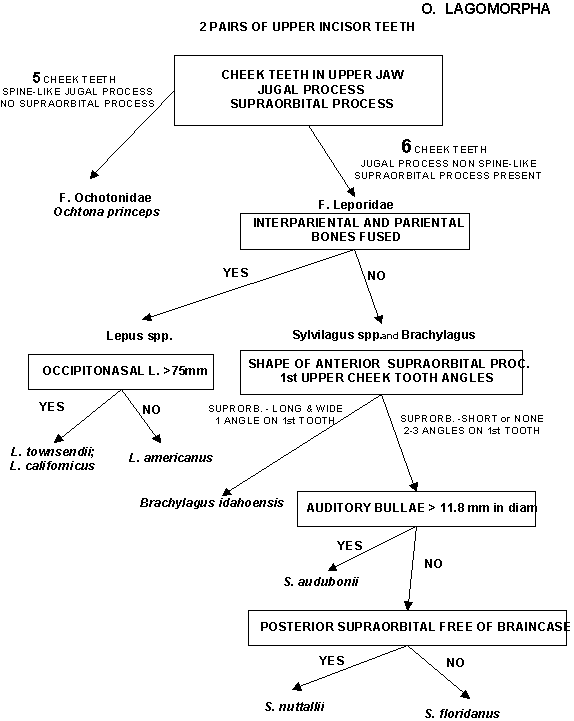

ORDER LAGOMORPHA -- Family Ochotonidae & Family Leporidae

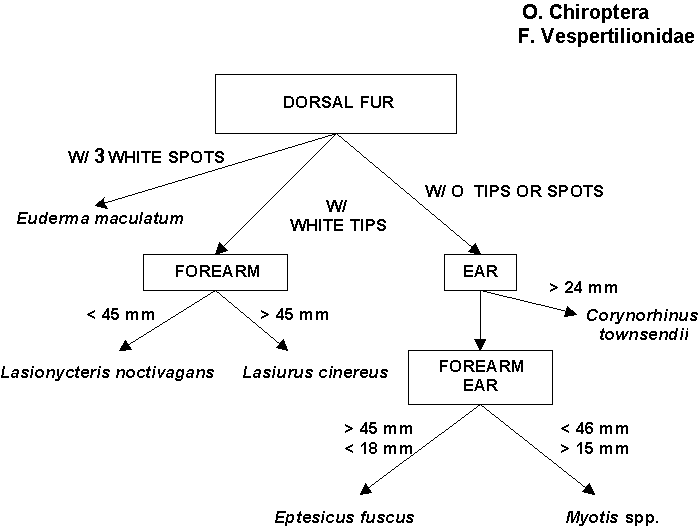

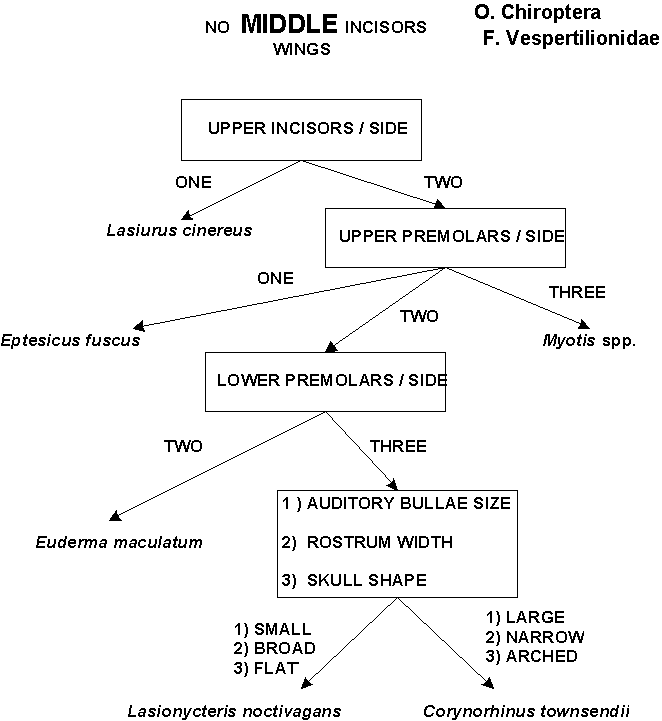

Laboratory 5: ORDER CHIROPTERA --- Family Vespertilionidae

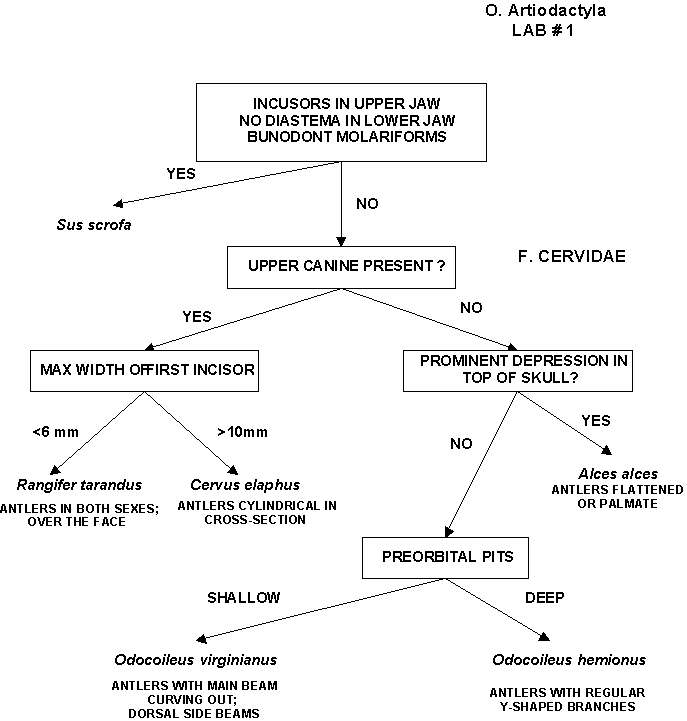

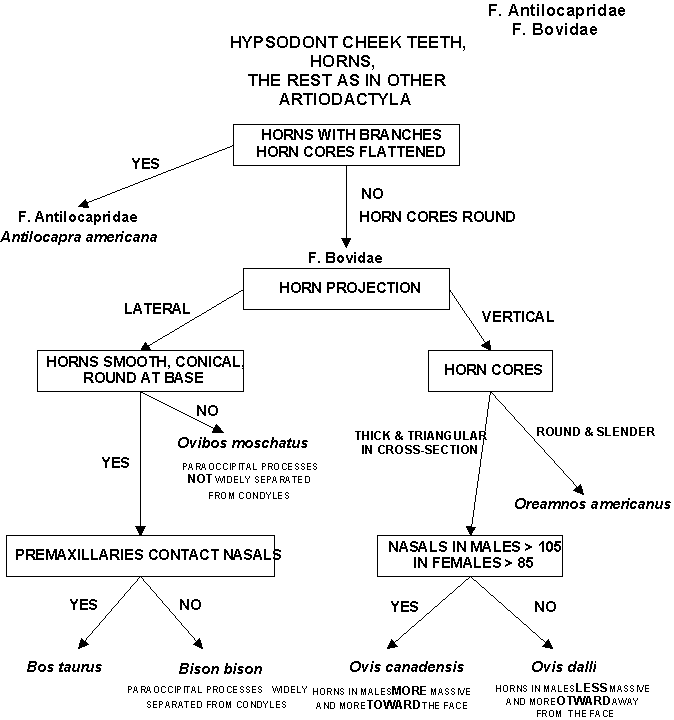

Laboratory 6: ORDER ARTIODACTYLA --- Family Cervidae, Suidae, Dicotylidae, Bovidae
---------
